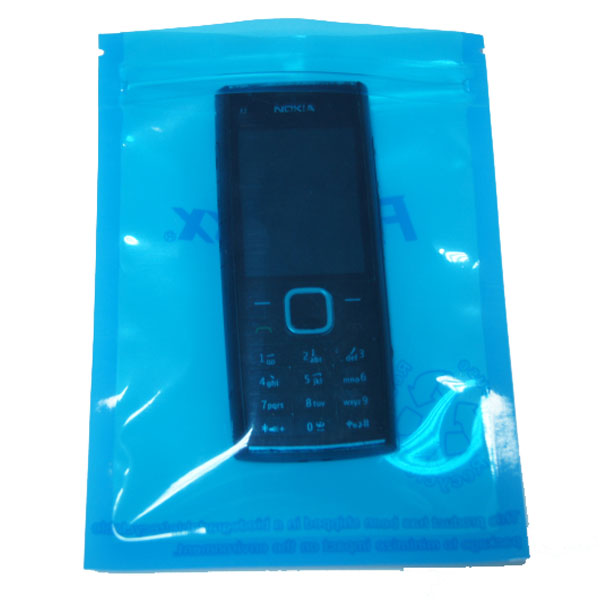

DADAO PET Electronic Bag / Hologram Multi layer Coextruded Bag With Zipper
SPECIFICATION
PET for electronic application
good light transmission uniformity,good color uniformity
Our products are widely applicable to packing and printing, holiday celebrations, upholstering, agricultural foods, medicine and hygiene, chemicals, electricity machinery, dresses, leather, beverages, the making and packing of anti-forgery trademarks, vacuum aluminum-plating, and cloth painting material processing,barrier materials, plastic flexible packaging, foodstuff, tobacco, compound paperboard, sticker and so on. It also can be made into metallic yarn and glitter powder.
APPLICATION
It is mainly used as the compound materials of electronic shiedling pounch,some are used for decoration materials.it is compounded with PE,CPP. And the finished product will be used for packing the electronic consumption materials
Specification :
Thickness :12 MIC etc
Width:≤2100mm
Paper core 76mm(3″),152mm(6″)
| Item | | Unit | Index | Test conditions |
| Tensile strength | MD | Mpa | 223 | Temperature 23°C Relativ humidity 40% |
| TD | Mpa | 205 |
| Elongation at Break | MD | % | 113 |
| TD | % | 107 |
| Friction of coefficient | The surface without Al plating/surface without Al plating | ---- | 0.57 |
| Equality of aluminized layer | % | ±5 |
| Fastness of the aluminized layer | % | No Aluminized layer peels |
| Wetting tension of Aluminum layer | Mn/m | 54 |
| Thickness of the aluminized layer | A | 100 |
Disclaimer: All trademarks and pictures shown here are as examples of our production capabilities only, they are not for sales, and they are the property of their respective owners.
PRODUCTION ADVANTAGE
1. High-precision 8 color photogravure press, precise print control, provide customer elegant apperence.
2. Guarantee the Packaging product safe and green by Non-benzene, Non-ketone ink.
3. Flexible stucture design, diversified laminated program, provide customer most economic solution.
4. Laminated by different character material, provide various function Packaging material.
5. Print and lamination combine with the multi-layer co-extruded material provide many solution for flexible package.
FOOD SAFEY
Shenhen Rainbow Co., ltd is authenticated by ISO , we have ISO9001:2008, certificate, and all our product are full compliance with China National Standards, it is produced by all the material which donot add any addition agent in the film processing. It is full compliance food safety regulations.
PRODUCTION STRUCTURE
| layer | Material | Thickness (um) |
| Print | BOPET | 12 |
| Print | BOPP | 20 |
| Print | BOPA | 15or25 |
| Print | PE | 40~100 |
| Print | Paper | |
| Barrier layer | AL | 7~20 |
| Barrier layer | MPET | 12 |
| Barrier layer | MOPP | 20 |
| Barrier layer | PA/PE co-extruded film | 25~200 |
| Barrier layer | EVOH co-extruded film | 25~200 |
| Barrier layer | Barrier coating material | |
| seal layer | PE | 30~120 |
| seal layer | CPP | 40~100 |
| seal layer | Hot melt | |
MORE APPLICATION
1) Inkjet printing.
2) Packing material for flower, frames, wallets, packing bags and so on.
3) Lamination with other materials, cutting.
4) Fireworks wrapping, gift wrapping and others, adding a sense of luxury.
5) Anti-counterfeit labels.
6) Decorative and festival items.
7) Making stationery, adhesive tapes, stickers.
PRODUCTION PERFORMANCE
excellent barrier to oxygen, light and moisture
non-toxic, eco-friendly
wonderful brightness
great adhesion
PRODUCTION PROCESS
transparent film, holographic printing, packing
